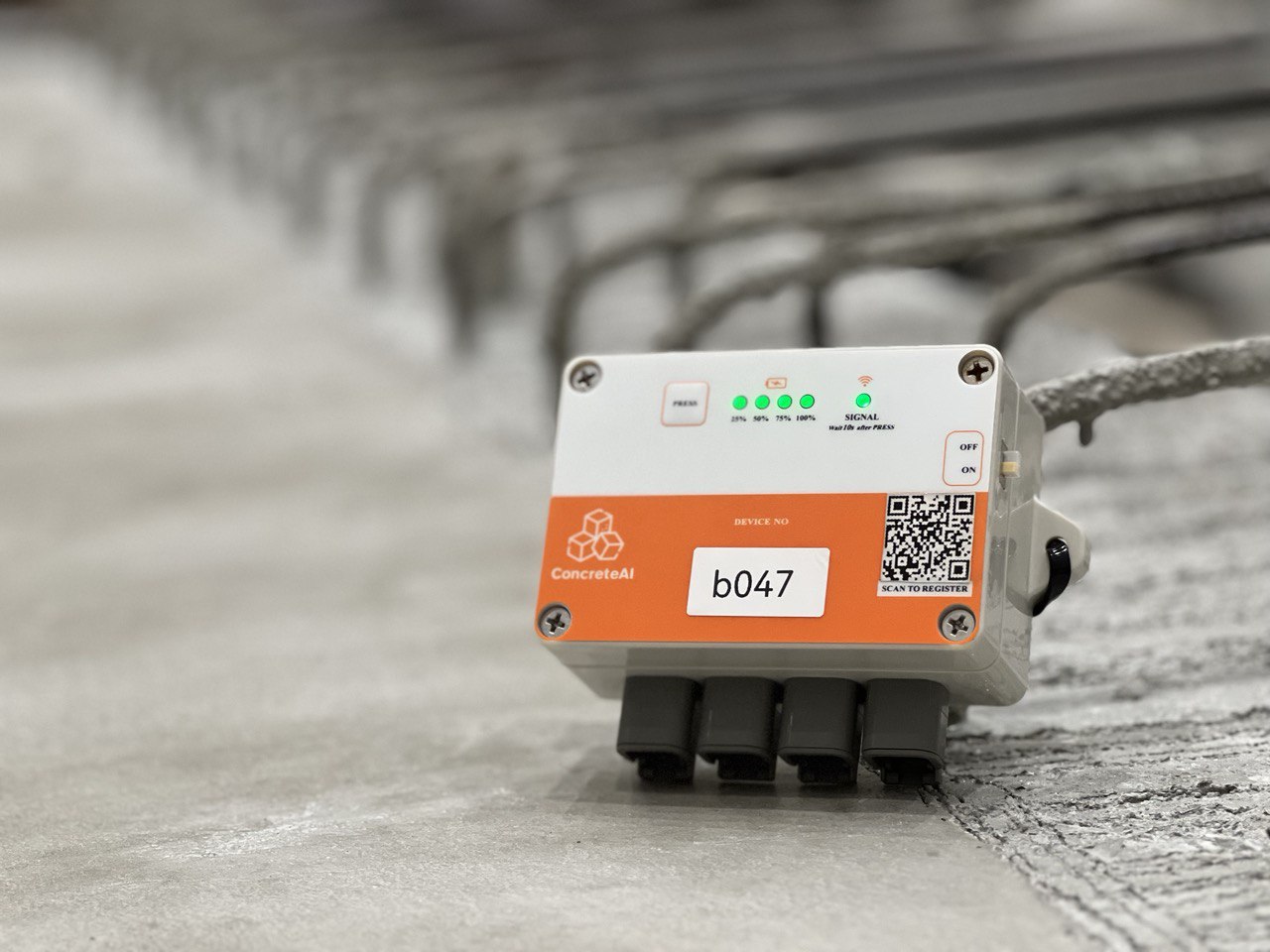

SmartHub

ConcreteAI's compact and battery-powered system enables projects to seamlessly monitor and observe real-time temperature and differential readings.

photo_2023-03-20 19.52.20.jpeg

Product Features

Reliable, Wireless & Hassle-free

Data Storage (SD Card)

Real-time Battery Status Monitoring

Tailored WhatsApp Notifications

Adjustable Monitoring Intervals

Variable Wire Length (1m-15m)

Battery Life up to 2 years

COMPLETE PACKAGE

Comes as a complete package


Easily measure multiple and deeper points within a concrete structure by connecting to SmartHub Ports. It's as simple as a click.


Gateway

Automatically gather real-time data from the SmartHub and transmit it to the web application.

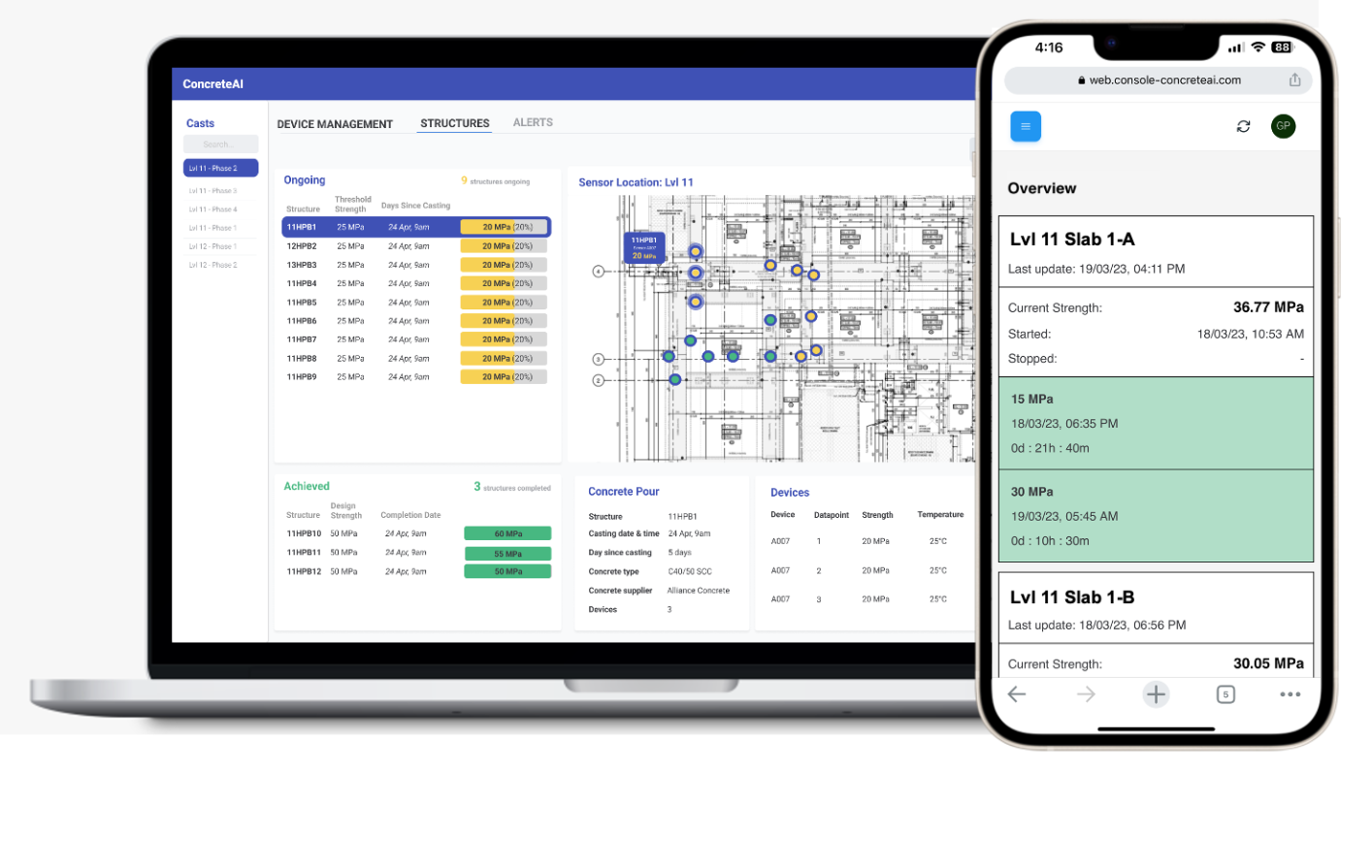

Web Application

Present, analyze, generate reports, and manage all collected data on-site. Alert users promptly with customizable insights.

HOW TO USE

ConcreteAI System Installation In 10 minutes

Interested to collaborate with us? Request a demo now.

WhatsApp Image 2022-12-28 at 3.34_edited

Set Up

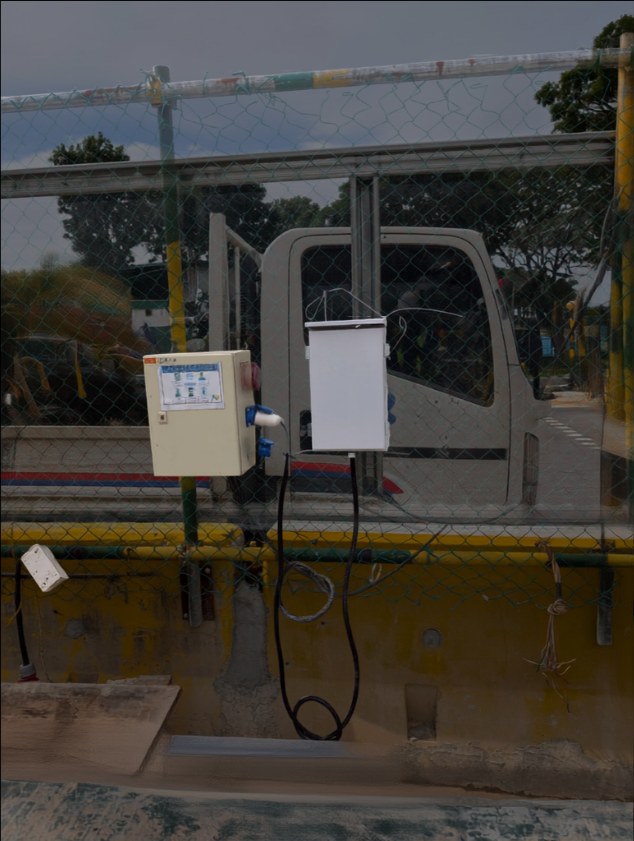

Connect a gateway to power or ConcreteAI's battery and place it within 500m of the SmartHub.

WhatsApp Image 2024-02-07 at 16.21.29.jpeg
photo_2024-04-06 17.59.47.jpeg

Secure

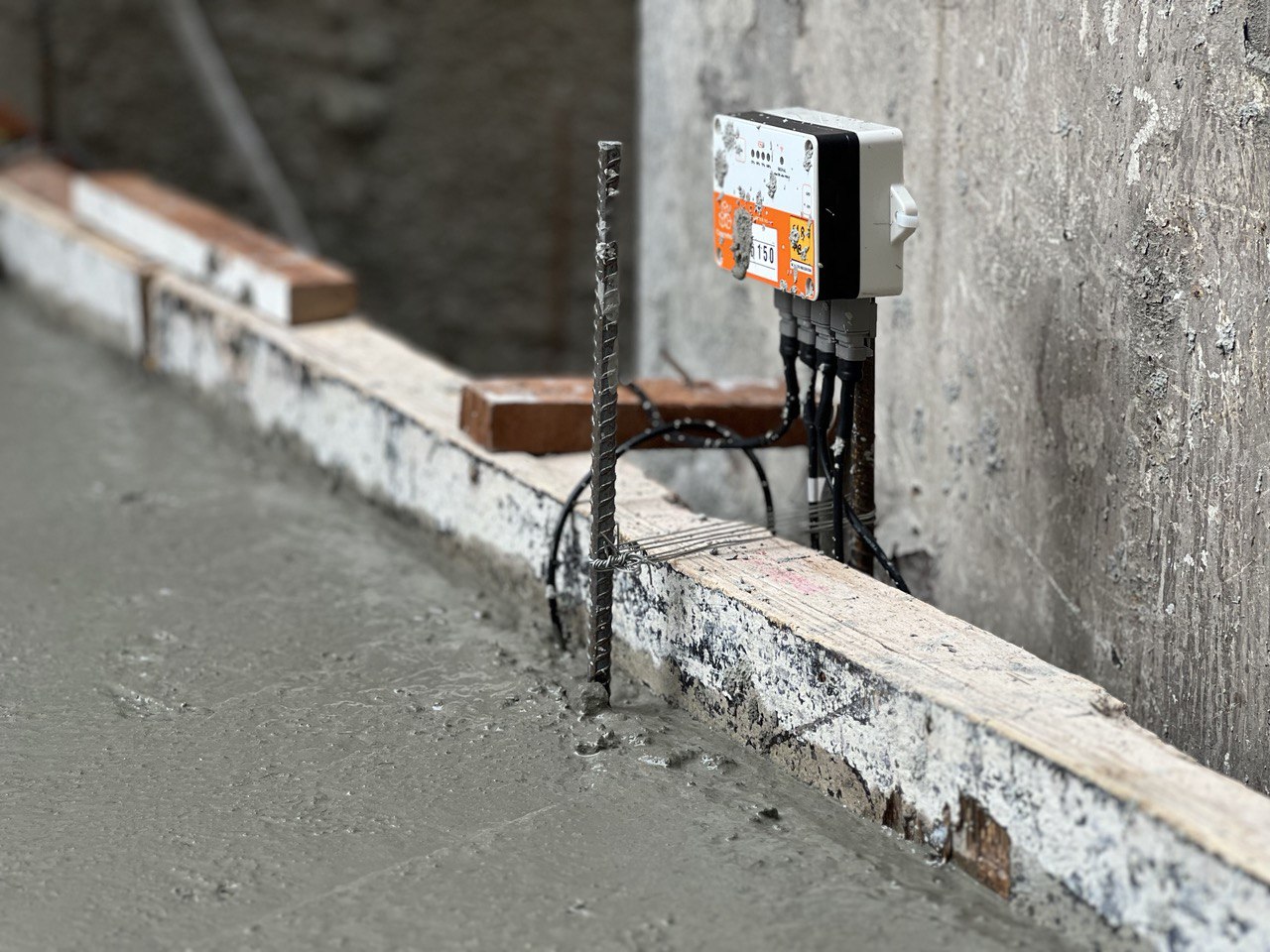

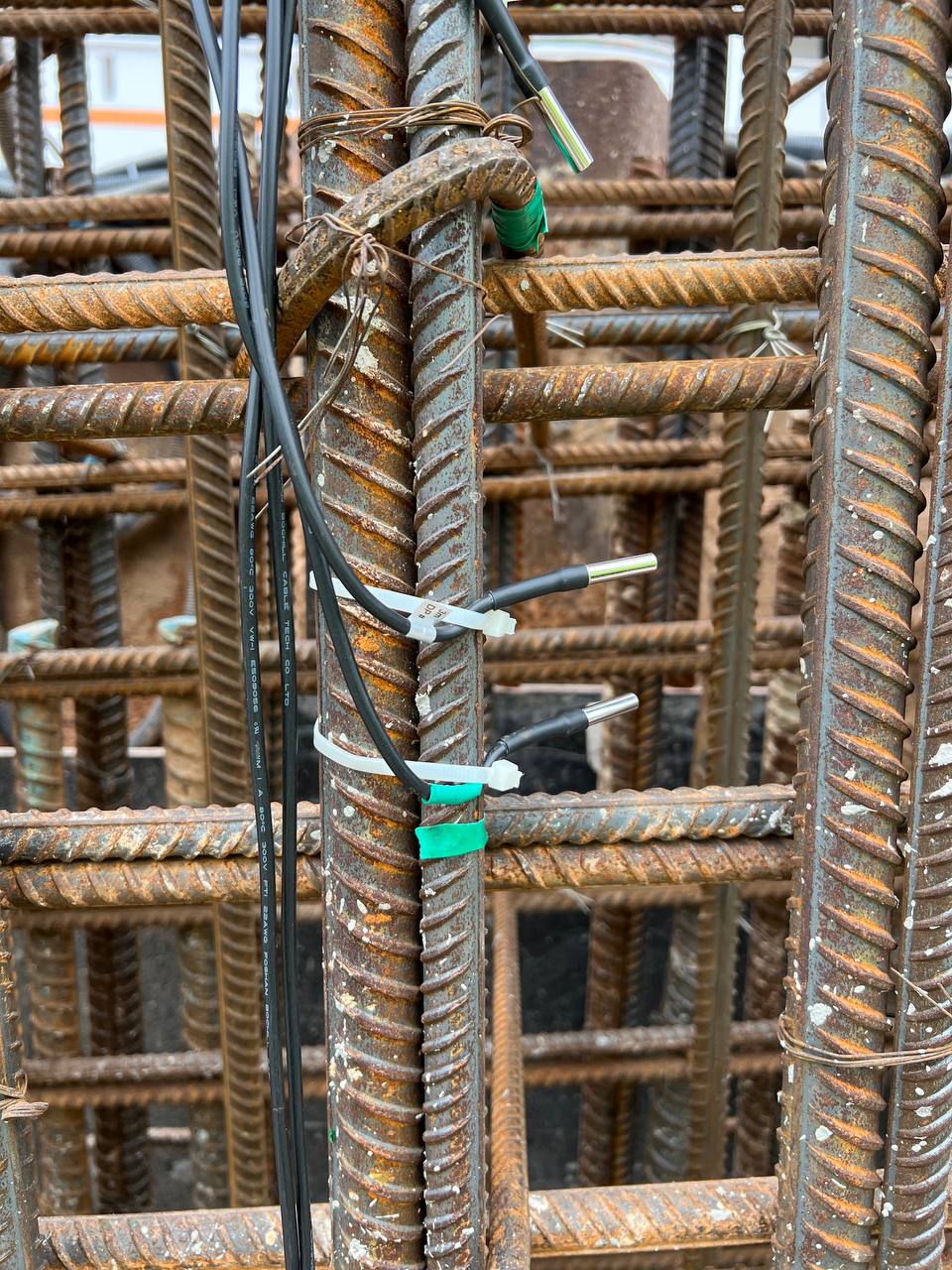

Secure temperature probes to rebar and position the SmartHub outside the concrete.

ConcreteAI Product Specifications.png

Download & Retrieve

View real-time data and download for report compilation. Retrieve device after curing period ends.

Specification

Technical Specification
Model
DLOS8N Outdoor LORAWAN Gateway
LORAWAN Frequency
AS923 (920-923Mhz range)
Power Imput
12v 300~500mA
IP Rating
IP65
Operating Temperature
-20~85°C
Wireless Signal Range
500m, subjected to the surrounding
Communication Mode
2.4G WiFi, Ethernet, 3G or 4G cellular
Dimensions
260 x 90 x 85 mm, 450g
Environment
Lighting Protection
Max can be connected
Up to 100
  • What does the ConcreteAI sensor monitor?
    ConcreteAI's SmartHub offers real-time monitoring of concrete temperature, which is then correlated with concrete compressive strength.
  • What does the ConcreteAI sensor monitor?
    ConcreteAI's SmartHub offers real-time monitoring of concrete temperature, which is then correlated with concrete compressive strength.
  • What does the ConcreteAI sensor monitor?
    ConcreteAI's SmartHub offers real-time monitoring of concrete temperature, which is then correlated with concrete compressive strength.
  • Is the method of strength measurement approved in Singapore and other areas?

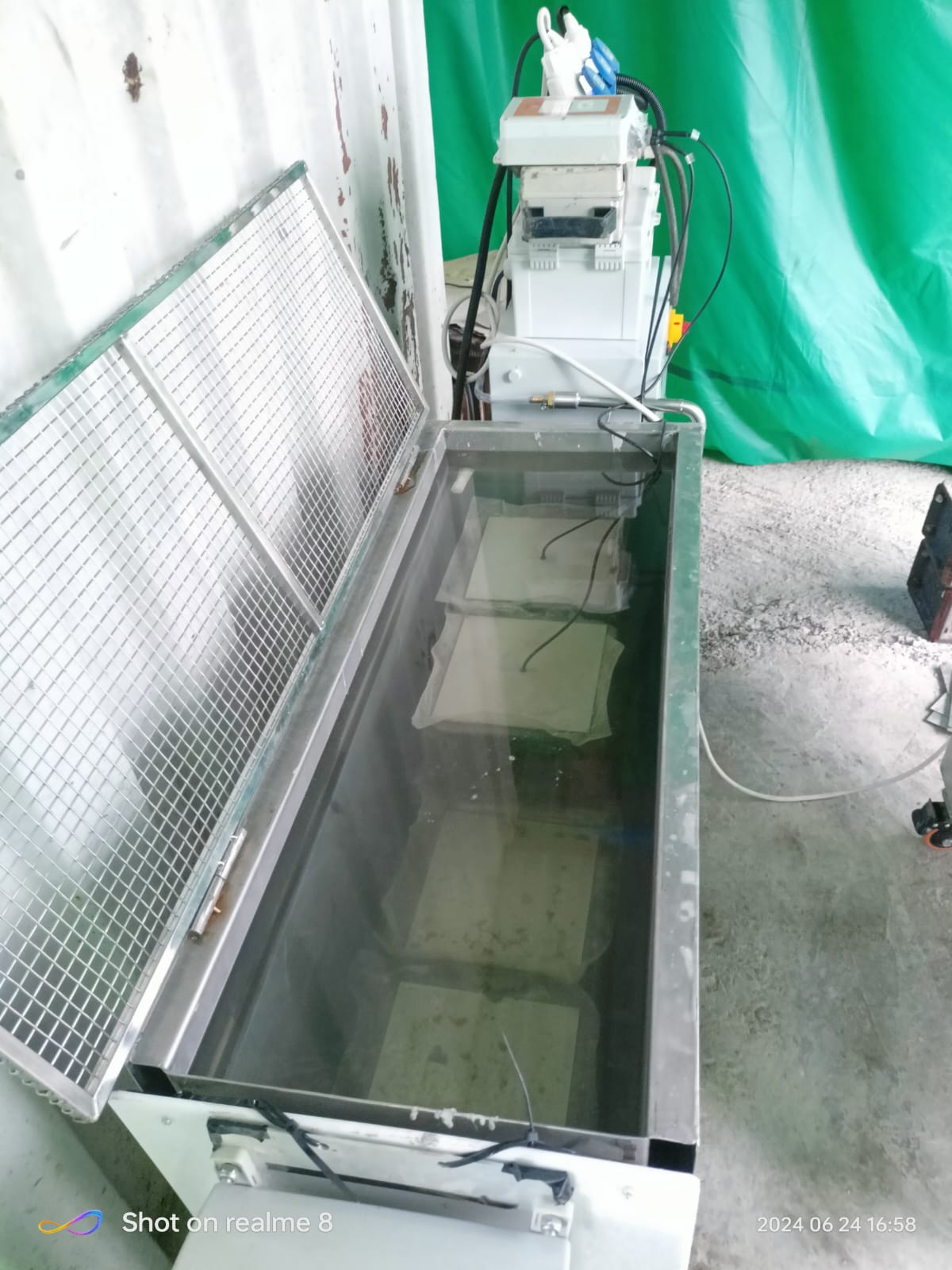

    Certainly. ConcreteAI's system comprises two components: the SmartHub, which employs the maturity method to deliver real-time concrete strength readings, and the SmartCure system, which utilizes temperature-matched curing for in-place concrete strength measurement. While the SmartHub provides continuous readings through a non-destructive method, the SmartCure system offers destructive results. In Singapore, the maturity method is endorsed in various standards such as SS 78: Part B1: 1992 (2018), SS EN 13791:2009 (2016), SS 592:2013, SS EN 1992-1-1:2008 (2015) Eurocode 2, and SS EN 13670:2022, among others. Additionally, the temperature-matched curing method is highlighted in BS 1881:130 and SS EN 13670:2022. These standards are referenced in the latest published Approved Solutions by the Building and Construction Authority of Singapore. (link) For other regions and countries, we recommend reaching out to us directly or contacting the local authority to verify if the BS and EN standards are referenced in the local guidelines.
  • Is the method of strength measurement approved in Singapore and other areas?
    Certainly. ConcreteAI's system comprises two components: the SmartHub, which employs the maturity method to deliver real-time concrete strength readings, and the SmartCure system, which utilizes temperature-matched curing for in-place concrete strength measurement. While the SmartHub provides continuous readings through a non-destructive method, the SmartCure system offers destructive results. In Singapore, the maturity method is endorsed in various standards such as SS 78: Part B1: 1992 (2018), SS EN 13791:2009 (2016), SS 592:2013, SS EN 1992-1-1:2008 (2015) Eurocode 2, and SS EN 13670:2022, among others. Additionally, the temperature-matched curing method is highlighted in BS 1881:130 and SS EN 13670:2022. These standards are referenced in the latest published Approved Solutions by the Building and Construction Authority of Singapore. (link) For other regions and countries, we recommend reaching out to us directly or contacting the local authority to verify if the BS and EN standards are referenced in the local guidelines.
  • Is the method of strength measurement approved in Singapore and other areas?
    Certainly. ConcreteAI's system comprises two components: the SmartHub, which employs the maturity method to deliver real-time concrete strength readings, and the SmartCure system, which utilizes temperature-matched curing for in-place concrete strength measurement. While the SmartHub provides continuous readings through a non-destructive method, the SmartCure system offers destructive results. In Singapore, the maturity method is endorsed in various standards such as SS 78: Part B1: 1992 (2018), SS EN 13791:2009 (2016), SS 592:2013, SS EN 1992-1-1:2008 (2015) Eurocode 2, and SS EN 13670:2022, among others. Additionally, the temperature-matched curing method is highlighted in BS 1881:130 and SS EN 13670:2022. These standards are referenced in the latest published Approved Solutions by the Building and Construction Authority of Singapore. (link) For other regions and countries, we recommend reaching out to us directly or contacting the local authority to verify if the BS and EN standards are referenced in the local guidelines.
  • How do you measure compressive strength in real-time?
    Concrete’s compressive strength is determined using the internationally accepted maturity method in accordance with ASTM C 1074 and EN 13670. Maturity is the relationship between concrete temperature, time and strength gain. It is a way to measure the concrete’s in situ strength to expedite schedule, increase level of confidence and improve construction methods. Every concrete mix design has its own strength – maturity relationship. Thus, for every unique mix design, a 28-day calibration period is required to find the relationship.
  • How do you measure compressive strength in real-time?
    Concrete’s compressive strength is determined using the internationally accepted maturity method in accordance with ASTM C 1074 and EN 13670. Maturity is the relationship between concrete temperature, time and strength gain. It is a way to measure the concrete’s in situ strength to expedite schedule, increase level of confidence and improve construction methods. Every concrete mix design has its own strength – maturity relationship. Thus, for every unique mix design, a 28-day calibration period is required to find the relationship.
  • How do you measure compressive strength in real-time?
    Concrete’s compressive strength is determined using the internationally accepted maturity method in accordance with ASTM C 1074 and EN 13670. Maturity is the relationship between concrete temperature, time and strength gain. It is a way to measure the concrete’s in situ strength to expedite schedule, increase level of confidence and improve construction methods. Every concrete mix design has its own strength – maturity relationship. Thus, for every unique mix design, a 28-day calibration period is required to find the relationship.
  • What kind of structures or concrete mix can ConcreteAI solution be applied to?
    ConcreteAI sensors can be used for all types of concrete structures, for example wall, slab, column, beam, viaduct, hollow-core, pile cap and etc. ConcreteAI solution can also be applied to all common mix designs, including concrete with fly ash, GGBS and others. Feel free to contact us via email or phone if you would to clarify further.
  • What kind of structures or concrete mix can ConcreteAI solution be applied to?
    ConcreteAI sensors can be used for all types of concrete structures, for example wall, slab, column, beam, viaduct, hollow-core, pile cap and etc. ConcreteAI solution can also be applied to all common mix designs, including concrete with fly ash, GGBS and others. Feel free to contact us via email or phone if you would to clarify further.
  • What kind of structures or concrete mix can ConcreteAI solution be applied to?
    ConcreteAI sensors can be used for all types of concrete structures, for example wall, slab, column, beam, viaduct, hollow-core, pile cap and etc. ConcreteAI solution can also be applied to all common mix designs, including concrete with fly ash, GGBS and others. Feel free to contact us via email or phone if you would to clarify further.
  • How many data points are required inside a structure to measure compressive strength?
    Traditionally, we suggest installing a minimum of 2 data points within a structure or casting area. These monitoring points should be positioned at critical locations where the maximum working stress occurs. At the critical locations, a redundant sensor will also be placed. For every project, we will coordinate with and seek approval from the project team to finalize the monitoring plan. Should you require clarification on monitoring specific structures or casting items, please don't hesitate to reach out to us via email or phone.
  • How many data points are required inside a structure to measure compressive strength?
    Traditionally, we suggest installing a minimum of 2 data points within a structure or casting area. These monitoring points should be positioned at critical locations where the maximum working stress occurs. At the critical locations, a redundant sensor will also be placed. For every project, we will coordinate with and seek approval from the project team to finalize the monitoring plan. Should you require clarification on monitoring specific structures or casting items, please don't hesitate to reach out to us via email or phone.
  • How many data points are required inside a structure to measure compressive strength?
    Traditionally, we suggest installing a minimum of 2 data points within a structure or casting area. These monitoring points should be positioned at critical locations where the maximum working stress occurs. At the critical locations, a redundant sensor will also be placed. For every project, we will coordinate with and seek approval from the project team to finalize the monitoring plan. Should you require clarification on monitoring specific structures or casting items, please don't hesitate to reach out to us via email or phone.
